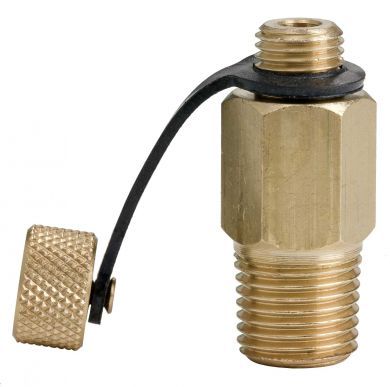

Brass Test Points

Suitable for low temperature hot water and chilled water(Not suitable for oil or other hydro-carbon fluids).

Alternative cores and construction options are available for use on some oils, gases and chemicals. Please contact us for further information.

Body, cap and retaining ring : Brass.
Cap seal : Neoprene Rubber.
Retaining strap : Ethylene Propylene Rubber.
Core : Ethylene Propylene Rubber.

Max. Pressure: 35 Bar (500 psi).
Temp range: -8°C (18°F) up to +135°C (275°F).

Standard type 1/4" BSPT overall length (inc. cap) : 38mm
Standard type 1/2" BSPT overall length (inc. cap) : 41mm

The Extended Type is an additional 38mm long to allow forany pipe insulation.

Brass Test Points
  • - Click to enlarge
  • - Click to enlarge
Product Information
Specification

Price£0.00

Product CodeSelect-Product-Options-Below
Condition-
Weight0.06kg
