Need a specific configuration? If you can’t find the exact specifications or components you require, please get in touch with our team - we are here to help.
63mm – Water System Pressure Gauge – Back Connection – Accuracy ±2.5%
Price range: £12.95 through £22.45

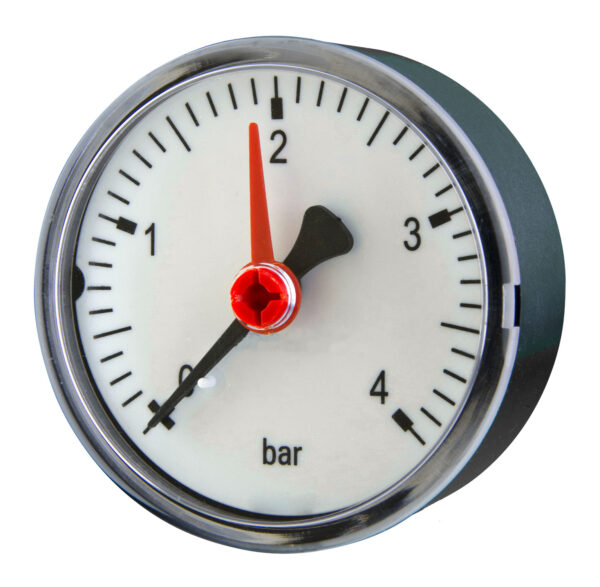

63mm water system pressure gauge with back connection, brass wetted parts, black ABS case, and ±2.5% accuracy for dependable pressure monitoring.
The 63mm Water System Pressure Gauge is designed for reliable measurement of water and compatible fluids in industrial and building services applications. Its robust construction and clear, adjustable pointer make it ideal for monitoring system pressures with accuracy and ease.
Key Features
- 63mm diameter dial for clear, easy reading

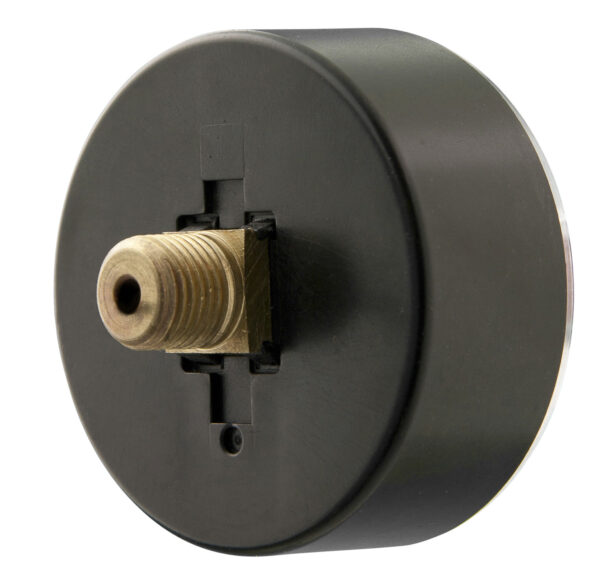

- Back connection with brass wetted parts for durability and corrosion resistance
- Black ABS plastic case with a crystal-clear acrylic push-fit window
- Adjustable red pointer for accurate pressure monitoring and set point indication
- Accuracy of ±2.5% full scale for reliable pressure measurement
- Suitable for water and compatible fluids up to 25 bar, excluding highly corrosive or high-temperature applications
| Weight | 0.08 kg |
|---|---|
| Range | 0/1.6 bar single scale 0/2.5 bar single scale 0/4 bar single scale 0/6 bar single scale 0/10 bar single scale 0/16 bar single scale 0/16 mH²O single scale 0/25 mH²O single scale 0/40 mH²O single scale 0/60 mH²O single scale |
| Thread | |
| Connection | |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
