Peak / Max Pressure Gauges
£POA

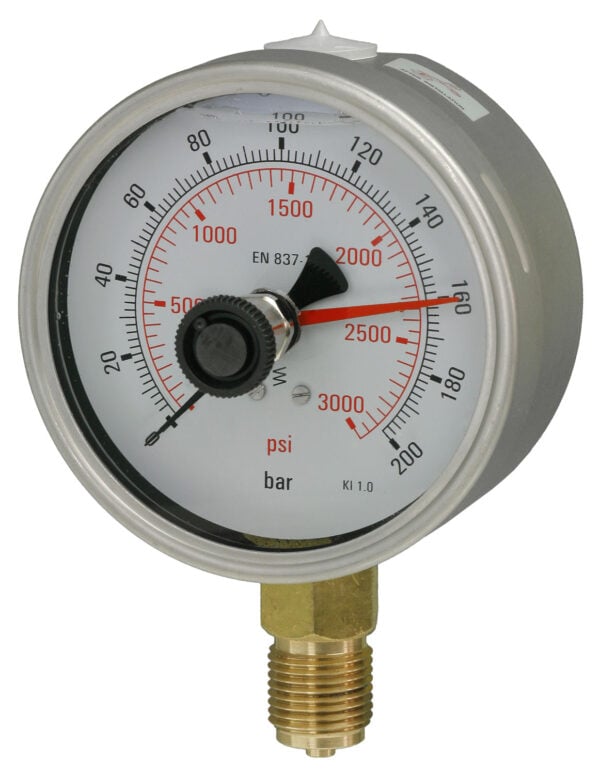

Monitoring transient spikes in pressure or temperature is critical for safeguarding machinery and diagnosing system faults. Our Peak Pressure Gauges feature a secondary indicator—commonly referred to in the industry as a follower pointer, drag pointer, tell-tale pointer, or slave pointer—designed to capture and hold the absolute maximum reading reached within your process.
Tamper-Proof Reset System
The maximum indicator is pushed forward by the main gauge pointer as pressure or temperature rises. When the system pressure drops, the peak pointer remains firmly in place, giving you an accurate record of the peak event.
- Manual Reset: The pointer stays at the maximum position until it is manually reset using a specialised tool supplied with the gauge.
- Anti-Tamper Control: To prevent unauthorised resetting or accidental adjustments on-site, the reset tool can be completely removed from the instrument and stored securely by maintenance personnel. Alternatively, it can be left attached to the gauge face for easy access.
Specification & Options
Built to order to match your exact configuration, these specialist instruments are highly adaptable:
- Sizes Available: Offered in 63mm, 100mm, and 150mm nominal diameters.
- Case Filling: Supplied dry as standard across all sizes. For applications subject to heavy mechanical vibration or pulsation, glycerine filling is available as an optional upgrade exclusively on the 100mm diameter model.
Unsure which pointer style suits your workflow? Talk to our experienced sales engineers today to configure a reliable peak-recording solution for your facility.
