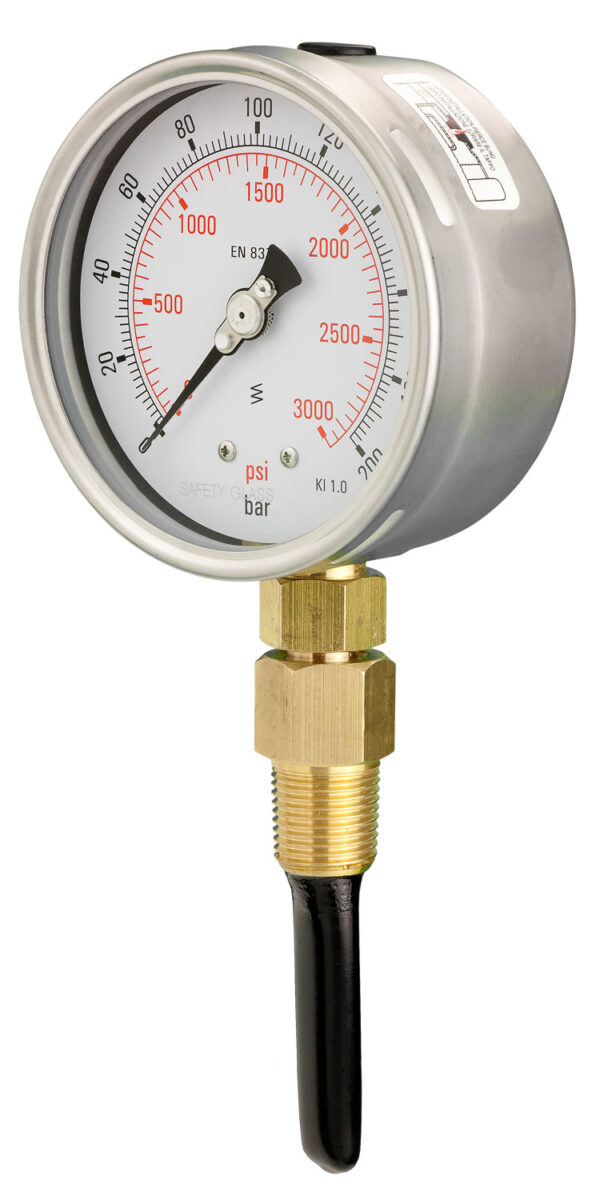

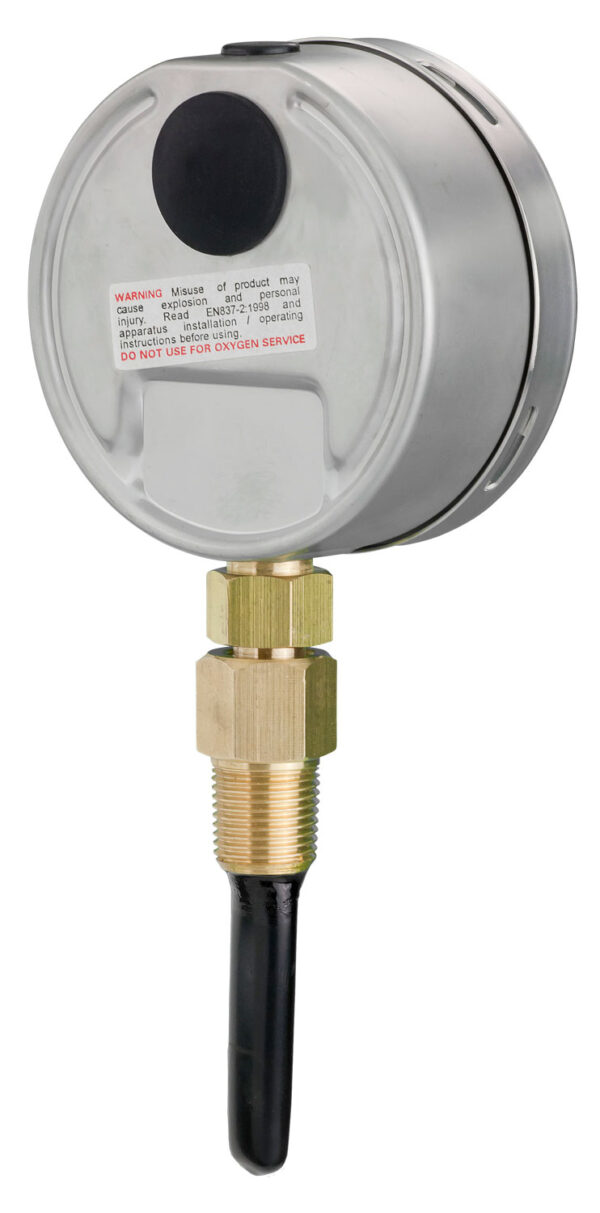

Grout & Concrete Diaphragm Seals

Monitoring pressure in lines carrying structural grout, wet concrete, raw sewage, or thick waste fats is notoriously difficult for standard instrumentation. These high-viscosity fluids and dense, suspended solids can instantly clog, score, or destroy standard metal sensor faces. Our heavy-duty Grout & Concrete Seals are engineered specifically to overcome these brutal processing environments, acting as a rugged physical barrier that ensures continuous, trouble-free pressure readings.

Abrasion-Resistant Composite Design

By combining high-strength metal housings with ultra-flexible polymer technology, these seals offer exceptional resilience against abrasive media:

• Flexible PVC Diaphragm: Utilises a tough, chemical- and wear-resistant PVC diaphragm. This highly flexible material is uniquely suited for absorbing the heavy impact of grit, aggregate, and sludge without puncturing or fatiguing.
• Robust Connection Housing: The main seal body is available in heavy-duty industrial brass or premium AISI 316L stainless steel depending on your system’s corrosion requirements.
• Standard Fittings: Features a rugged 1/2″ BSPT male process thread as standard and a 1/2″ BSP instrument port to accept heavy-duty mechanical pressure gauges or industrial transmitters.

Performance & Process Safety

• Extreme Pressure Envelope: Built to survive demanding high-pressure pumping systems, with an operational range spanning from 2 bar up to an impressive 400 bar maximum.
• Safe Transmission Fill: Pre-filled with standard FDA-approved non-toxic glycerine fluid, ensuring precise hydraulic pressure transfer while offering absolute process safety.

Are you managing a tunnelling project, a concrete batching plant, or a wastewater treatment facility? We understand that equipment downtime is incredibly costly, which is why we offer highly competitive pricing and rapid turnaround times on our entire slurry seal range. Contact our UK technical sales team today to secure your inventory.
