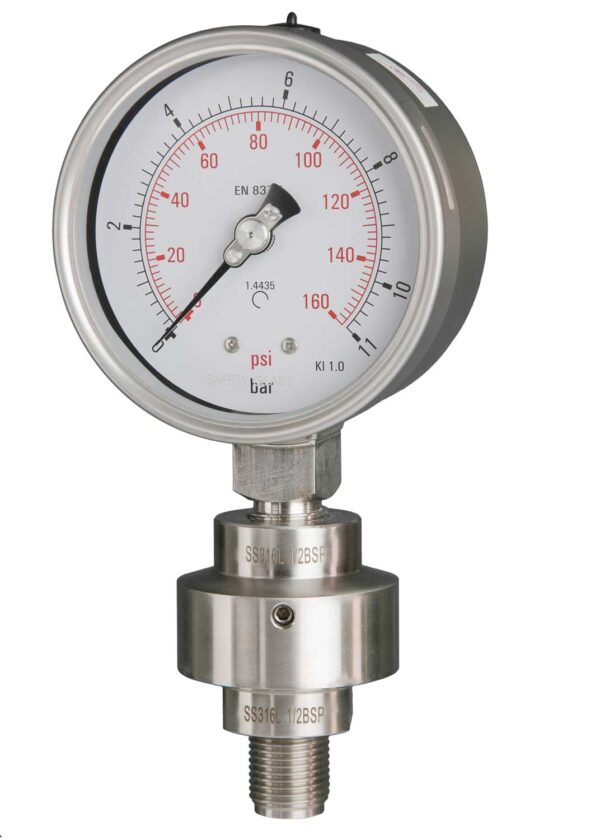

Standard Chemiseal with 100mm Gauge Diaphragm Seal
£215.00
Robust 100mm pressure gauge with 57mm AISI 316L Chemiseal diaphragm seal, featuring dual scale dial and ±1.0% accuracy for reliable industrial pressure measurement.
Standard Chemiseal with 100mm Gauge Diaphragm Seal
The Standard Chemiseal with a 100mm pressure gauge and diaphragm seal is designed to provide reliable pressure measurement in demanding industrial environments. Its robust stainless steel construction and sealed design make it ideal for applications requiring corrosion resistance and protection against process media.
Key Features
- 57mm nominal diameter Chemiseal body and diaphragm made from AISI 316L stainless steel for excellent corrosion resistance
- 100mm nominal diameter pressure gauge with AISI 304 stainless steel case and AISI 316L wetted parts
- Dual scale dial displaying bar (outer, black) and psi (inner, red) with ±1.0% full scale accuracy
- 1/2″ BSP female instrument connection and 1/2″ BSP male threaded process connection with 10mm bore
- Micro-adjustable pointer and polycarbonate window for clear, precise readings
- Gauge supplied dry with option for FDA approved non-toxic glycerine fill fluid; note gauge must not be removed from Chemiseal to maintain fill integrity
| Weight | 1.27 kg |
|---|---|
| Range | 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar and 0/240 psi 0/20 bar and 0/300 psi |
| Diameter | |
| Case Material | |
| Wetted Material | |
| Can be Glycerine Filled |
