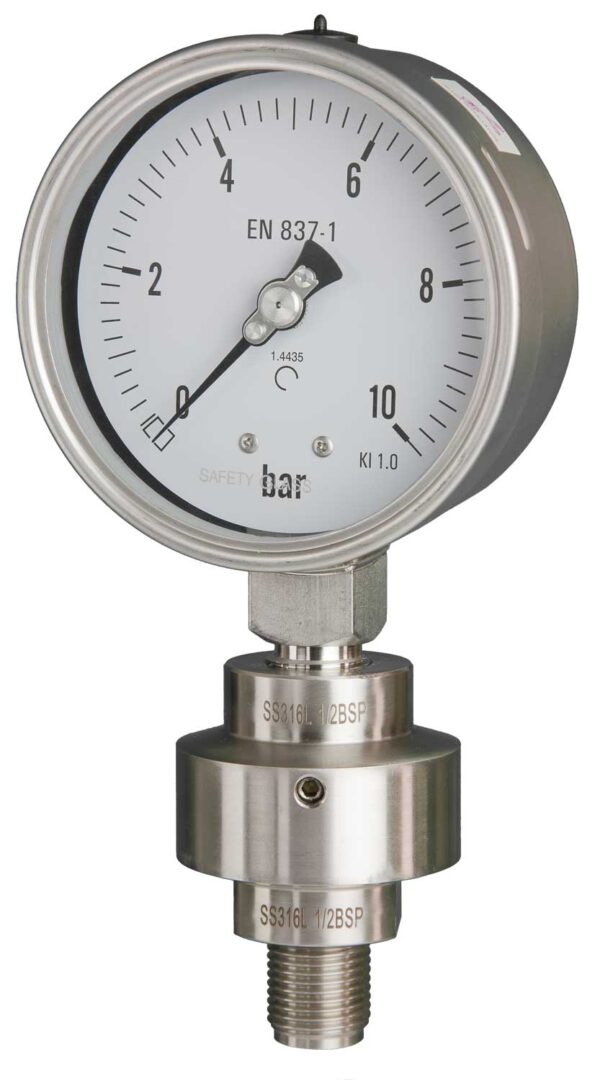

Welded Diaphragm Seals with Threaded Connection

Our all-welded threaded diaphragm seals offer a robust, high-performance solution at a highly competitive price point. Designed to isolate pressure instruments from corrosive, highly viscous, or sanitary process media, these seals prevent damage and clogging, making them the ideal choice for general industrial processing and harsh chemical environments.

Versatile Industry Application

Thanks to their clean, high-strength welded construction, these seals are widely utilised across a diverse range of demanding UK sectors:

• Petrochemical & Paint/Spraying: Handling aggressive solvents, coatings, and chemicals.
• Pharmaceutical & Sanitary: Ensuring zero process contamination with smooth, crevices-free barrier surfaces.

Technical Specifications & Configurations

We stock and manufacture these units in a broad variety of sizes and thread styles, all available on rapid delivery:

• Premium Materials: The seal housing and diaphragm are manufactured from high-grade AISI 316L stainless steel as standard, with exotic materials available to special order.
• Process Connections: Standard options include 3/8″ BSP, 1/2″ BSP, and 1/2″ NPT. A compact 1/4″ BSPT connection is also available exclusively for our mini-seal variant.
• Instrument Connections: 1/2″ BSP is supplied as standard (1/4″ BSP for the mini-seal), with alternative threads engineered upon request.
• Safe Fill Fluid: Pre-filled with standard FDA-approved non-toxic glycerine, ensuring ultimate safety and fluid compatibility.
• Pressure Capabilities: Supports up to 400 bar maximum for the mini-seal configuration, and up to 100 bar maximum for all other standard thread sizes.

Available Custom Options

• Remote Capillary Line: Allows the pressure gauge or transmitter to be mounted away from the process line, isolating it from intense heat or heavy mechanical vibrations.
• Clean-Out Facility: Features an integrated flushing/clean-out connection, allowing maintenance teams to easily purge media buildup from behind the diaphragm without removing the seal from pipework.

Do you have an urgent breakdown or require a custom thread configuration? Contact our experienced UK engineering team today for quick lead times and competitive volume pricing.
