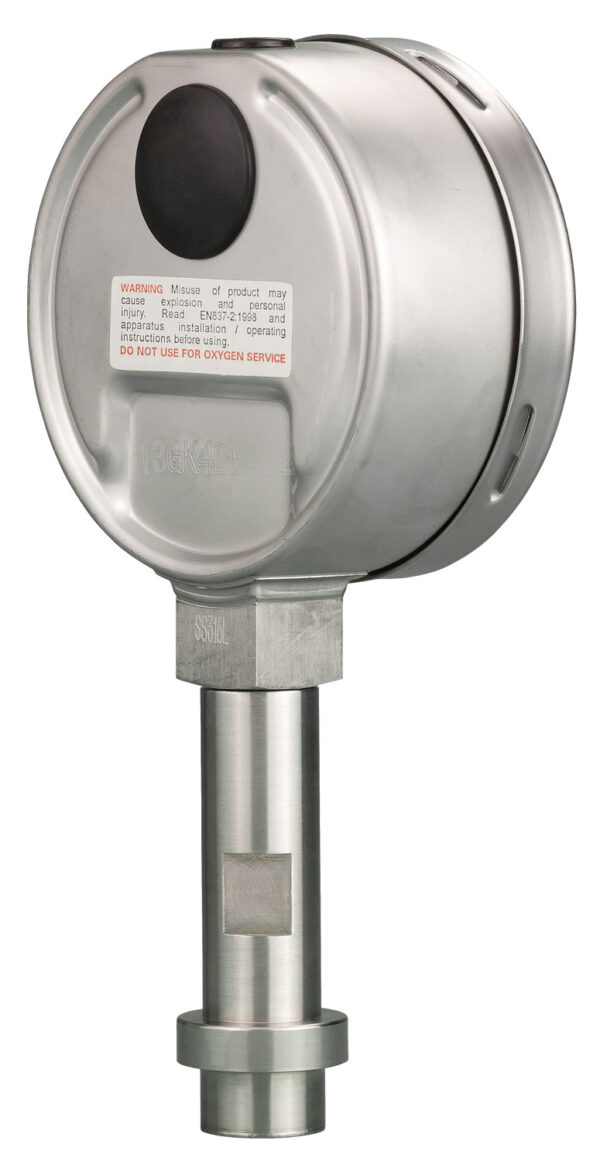

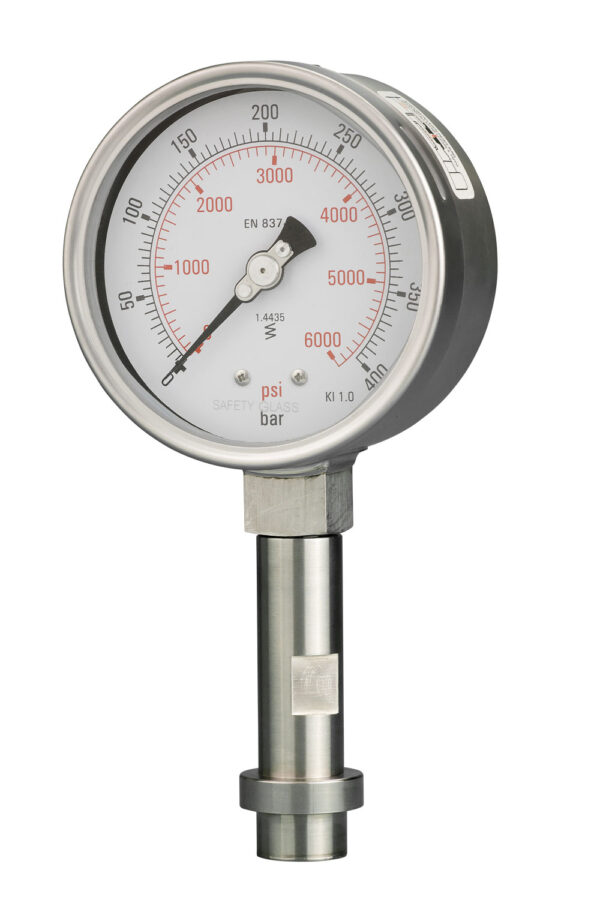

Hygienic Homogeniser Diaphragm Seals
£POA
Homogenisation processes subject instrumentation to a punishing combination of intense pressure spikes, heavy mechanical vibration, and strict hygiene mandates. Our specialised homogeniser diaphragm seals are engineered to thrive in these severe conditions. Providing a completely flush, crevice-free barrier, these seals protect your pressure indicators and transmitters while ensuring that milk, cream, and other high-purity media flow smoothly past the sensor face without getting trapped or causing bacterial buildup.
Heavy-Duty Design & Mount Profiles
Built specifically to integrate into high-pressure homogenising machinery block configurations:
- Sensor Configurations: Available in the widely specified button design for standard flush installations, as well as a fishtail model engineered to match specific machine head shapes and flow paths.
- Premium Material Integrity: The seal body and the integrated flush diaphragm are precision-machined from high-grade AISI 316L stainless steel, offering exceptional resistance to high shearing forces and aggressive Clean-in-Place (CIP) chemicals.
- Secure Block Mounting: Features a rugged block-style mounting interface designed to bolt directly into the homogeniser body, ensuring a leak-tight, high-pressure mechanical seal.
Core Specifications & Safety
- Extreme Pressure Capabilities: Engineered for high-stress systems, comfortably managing operational envelopes from 60 bar up to a maximum of 1000 bar.
- FDA-Approved Transmission: Pre-filled with standard non-toxic, FDA-approved glycerine, protecting your process from contamination risks while delivering fast, accurate pressure transmission.
- Instrument Connection: Fitted with a standard 1/2″ BSP thread to accept heavy-duty industrial pressure gauges or digital transmitters (alternative threads engineered to order).
Available Custom Options
- Integrated Cooling Tower: Highly recommended for processing lines where medium or sanitisation temperatures regularly exceed 100°C, isolating the connected instrument from thermal shock.
- Remote Capillary Line: Allows the pressure display to be mounted safely on a low-vibration wall or control console, away from the intense physical shaking of the homogeniser block.
Do you need to replace a worn button seal or upgrade a machine head during a planned maintenance window? We offer rapid production turnarounds and highly competitive pricing. Contact our expert UK sales team today to confirm your block dimensions.
