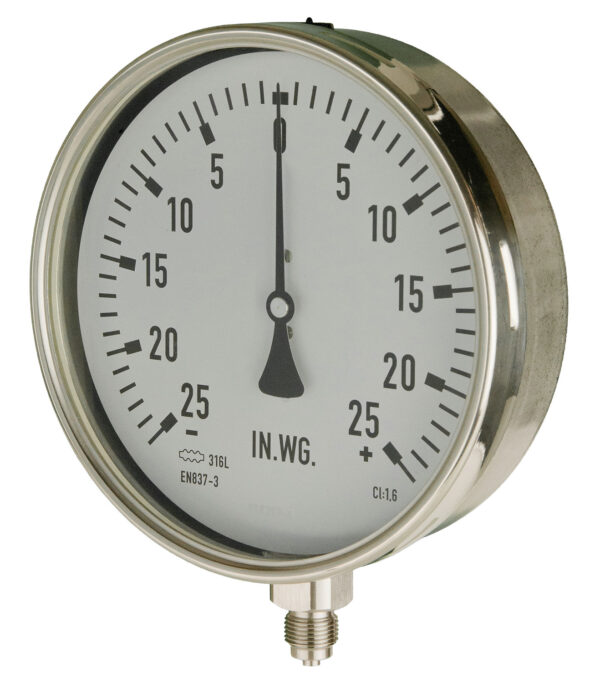

Ng Capsule Front

Capsule Gauge – Built to Order

£POA

Designed for the precise measurement of low pressure, vacuum, and compound ranges, these instruments are built in strict accordance with European Standard EN 837-1. Perfect for gaseous media, we offer highly competitive pricing and fast delivery across all configurations.

Key Specifications:

  • Dimensions & Materials: Available in 63mm, 100mm, and 160mm diameters. Features a rugged 304 stainless steel case with a choice of brass or premium 316L stainless steel internals and wetted parts.

  • Pressure Profiles: Covers vacuum, compound, and low-pressure scales ranging from 2.5 mbar to 800 mbar.

  • Customisable Dials: Supplied in single or dual scales using standard units (such as mbar or inH₂O). Custom, bespoke dials can also be manufactured to your requirements.

  • Mounting & Connections: Choice of bottom or back connection with a wide selection of thread options. Can be mounted directly, surface-mounted (3-hole rear flange), or panel-mounted (bracket or 3-hole front flange).

  • Accuracy Classes: Standard configuration is Class 1.6 (±1.6% full scale), with Class 1.0 (±1.0% full scale) available as an option.

Need a quote or technical advice? Our engineering team is here to help you configure the exact specification for your system.
