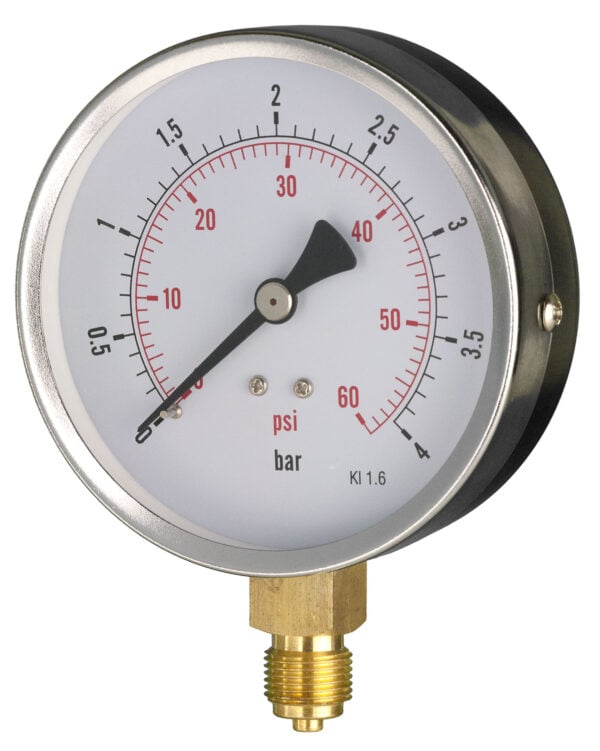

100mm – General Purpose Pressure Gauge – Dry, Bottom Connection – Accuracy ±1.6%
Price range: £17.95 through £21.95
100mm general purpose dry pressure gauge with bottom connection, brass wetted parts and ±1% accuracy, ideal for HVAC and mechanical services.
The 100mm General Purpose Pressure Gauge is designed for reliable pressure measurement in HVAC and mechanical services applications. Its robust construction and clear, accurate display make it ideal for monitoring fluid and gas pressures within specified limits.
Key Features
- 100mm diameter black enameled steel deep case for durability in industrial environments
- Bottom connection with brass wetted parts suitable for non-corrosive fluids and gases up to 25 bar
- ±1.6% full scale accuracy ensures precise pressure readings
- Stainless steel removable bezel combined with a polycarbonate window for impact resistance and easy maintenance

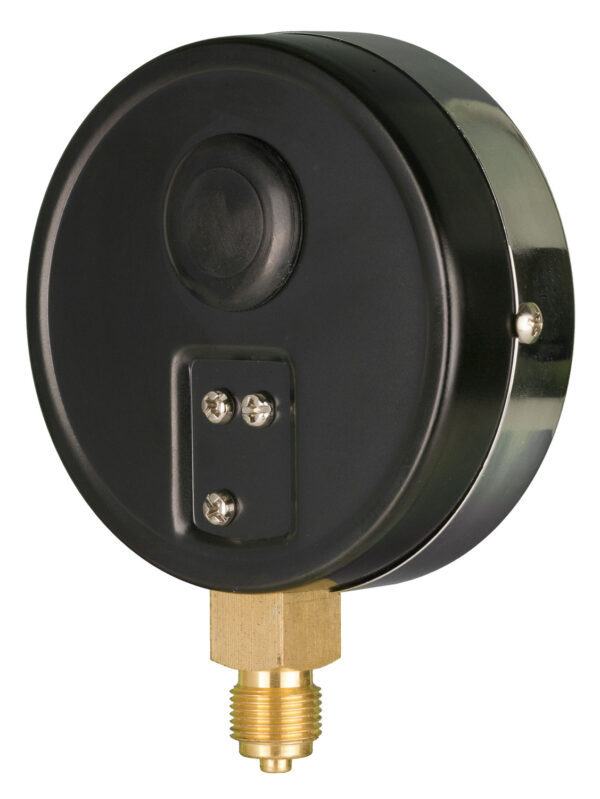

- 30mm rear safety blow-out disc enhances operator safety under overpressure conditions
| Weight | 0.36 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar single scale 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi |
| Thread | 3/8" BSP (parallel) 1/2" BSP (parallel) 1/2" BSPT (tapered) 1/2" NPT (tapered) |
| Connection | |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
