200mm, 250mm, 300mm – Large Diameter Special Build Gauges

Large Diameter Special Build Gauges

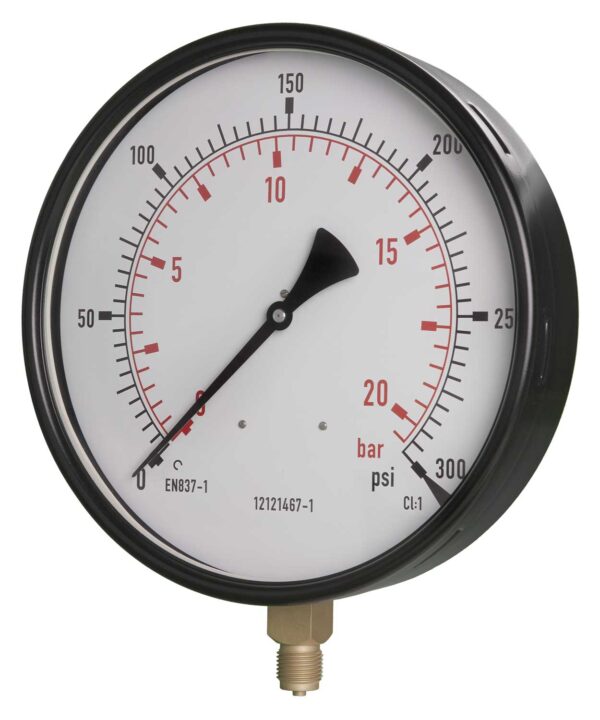

Built to order for demanding industrial systems, our large-diameter gauges offer clear readability and precision. They are highly configurable, covering vacuum, compound, and high-pressure ranges up to 1000 bar.

Technical Specifications:

• Pressure Profiles: Vacuum, pressure, and compound (combined) scales available up to 1000 bar.
• Dials & Scales: Supplied with standard scale layouts or fully custom, bespoke dials tailored to your exact system requirements.

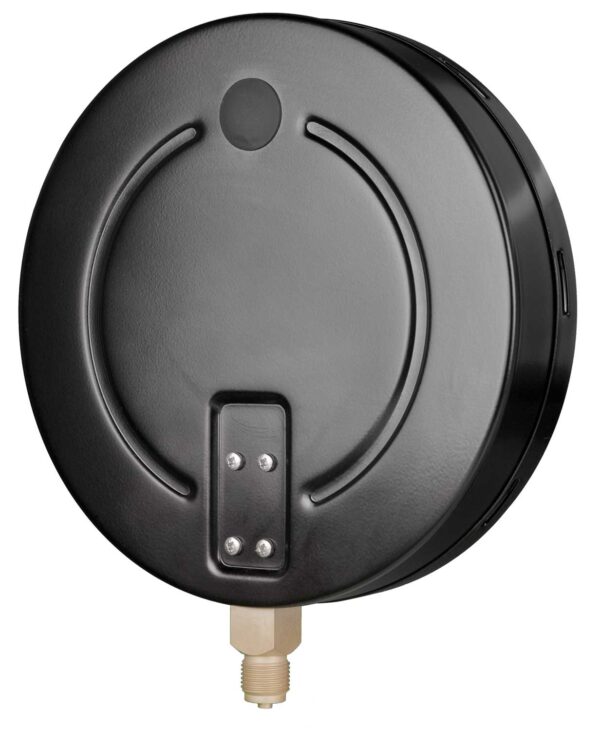

• Materials: Built with a durable black enameled steel case. Internal wetted parts are brass/bronze as standard, with premium 316L stainless steel optional for aggressive or corrosive media.
• Accuracy Classes: High-precision Class 1.0 ($\pm$1.0% full scale) as standard, with Class 0.5 ($\pm$0.5% full scale) available for critical calibration applications.
• Enhanced Safety: Can be manufactured to Full Safety Pattern construction specifications if your application demands ultimate operator protection.

Versatile Mounting Configurations:

• Bottom Connection: Direct mount or surface mount (via a 3-hole rear flange).
• Back Connection: Direct mount, panel mount (via a 3-hole front flange), or panel mount (via a rear U-clamp bracket).
