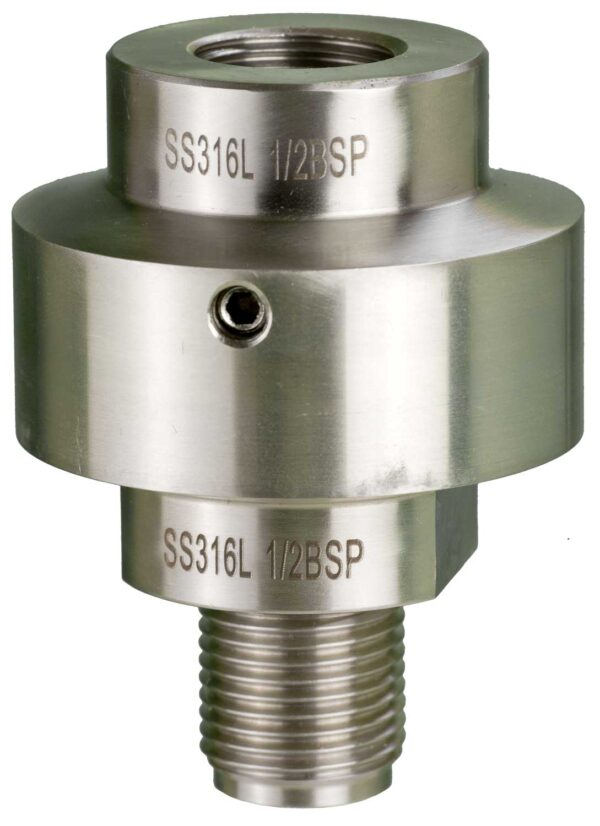

Standard Chemiseal Diaphragm Seal
£100.00
Economical 57mm welded chemiseal diaphragm seal with AISI 316L stainless steel construction, 1/2″ BSP female instrument connection and male threaded process connection, rated to 100 bar.
The Standard Chemiseal Diaphragm Seal is a robust and economical solution designed to protect pressure instruments from corrosive or viscous process media. Constructed from high-grade AISI 316L stainless steel, it ensures reliable performance and durability in demanding industrial environments.
Key Features
- Nominal diameter of 57mm for compact installation
- Welded chemiseal design providing a secure and leak-tight seal
- Manufactured entirely from AISI 316L stainless steel for excellent corrosion resistance
- Stainless steel diaphragm suitable for a wide range of process fluids
- M6 threaded fill hole with grub screw for easy filling and maintenance
- 1/2″ BSP female instrument connection with male threaded process connection featuring a 10mm bore
- Pressure rating up to PN 100 bar, suitable for many industrial applications
| Weight | 0.67 kg |
|---|---|
| Thread | |
| Wetted Material |
