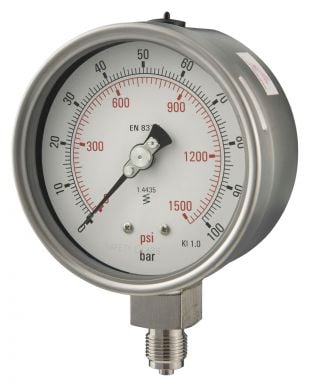

100mm – All Stainless Steel Pressure Gauge – Dry Fillable, Bottom Connection – Accuracy ±1%
Price range: £59.95 through £80.95
100mm stainless steel pressure gauge with bottom connection, ±1% accuracy and corrosion-resistant 316L wetted parts, designed for heavy duty industrial applications.
This 100mm all stainless steel pressure gauge is designed for reliable and accurate measurement of process fluids and gases. Its robust DIN-style construction and corrosion-resistant 316L stainless steel wetted parts make it ideal for demanding industrial environments.
Key Features
- Heavy duty DIN design with flush bezel and removable stainless steel bezel for easy maintenance and recalibration

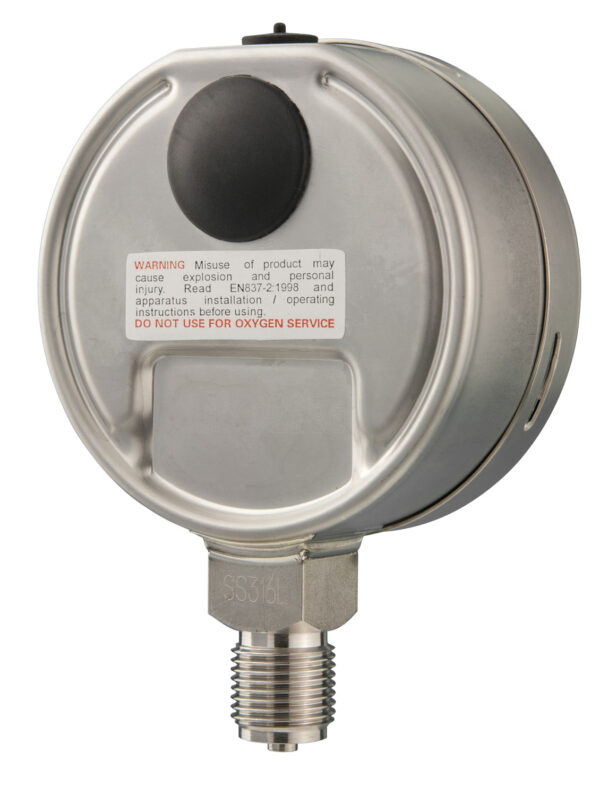

- Durable 304 stainless steel case with 30mm rear safety blow-out disc for enhanced operator protection
- AISI 316L stainless steel wetted parts including sealed Bourdon tube for excellent corrosion resistance
- 100mm diameter dial with laminated safety glass window for clear visibility and safety
- Bottom connection for straightforward installation in process lines
- High accuracy of ±1.0% full scale for precise pressure readings
