Need a specific configuration? If you can’t find the exact specifications or components you require, please get in touch with our team - we are here to help.

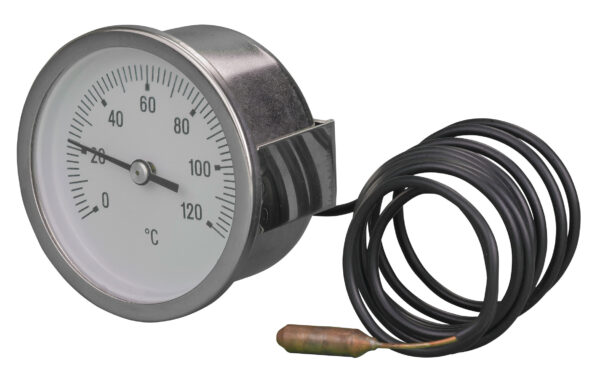

100mm – Capillary Thermometer – Panel Mounting with Rear Bracket – Accuracy ±3%
Price range: £39.70 through £50.70
100mm stainless steel capillary thermometer with shatter-resistant acrylic window and ±3% accuracy, ideal for panel mounting in industrial temperature monitoring.
The 100mm Capillary Thermometer is designed for precise remote temperature measurement in panel-mounted applications. Its robust stainless steel case and shatter-resistant acrylic window ensure durability in demanding industrial environments.
Key Features
- 100mm diameter stainless steel case with crimped bezel for secure panel mounting
- Clear, shatter-resistant acrylic window for easy reading and enhanced safety
- Liquid expansion operation providing reliable temperature indication with ±3% full range accuracy
- 1500mm copper capillary with PVC or copper braided sheathing for temperature range protection
- Turned brass sensor bulb designed for accurate temperature sensing
- Recommended panel cut-out diameter of 102mm for straightforward installation
| Weight | 0.24 kg |
|---|---|
| Range | -40/+40°C single scale 0/120°C single scale 0/350°C single scale |
| Diameter | |
| Case Material | |
| Accuracy | |
Brass 1/2" BSPT (tapered) x 100mm Pocket ID 7mm |
