160mm – General Purpose Pressure Gauge – Dry, Bottom Connection – Accuracy ±1%
Price range: £49.95 through £53.95
160mm general purpose dry pressure gauge with bottom connection, ±1% accuracy, brass wetted parts, and a robust black enameled steel case.

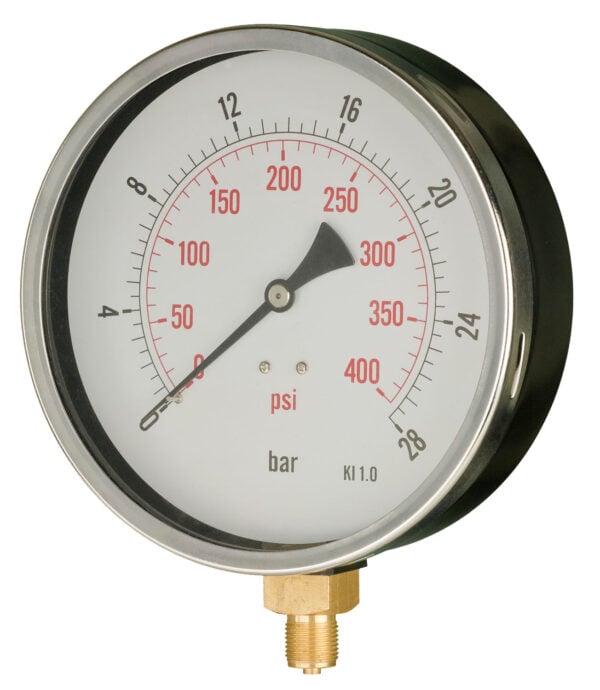

General Purpose 160mm Dry Pressure Gauge with Bottom Connection
This robust 160mm pressure gauge is designed for reliable measurement in HVAC and general industrial applications. Its durable construction and precise accuracy make it ideal for monitoring pressure in systems where dry gauges are preferred.
Key Features
- 160mm diameter black enameled steel deep case for heavy-duty use
- Bottom connection for straightforward installation in HVAC and building services
- ±1% full scale accuracy ensures precise pressure readings
- Brass wetted parts suitable for non-corrosive fluids and gases (excluding oxygen and acetylene)
- Stainless steel removable bezel and clear instrument glass window for durability and easy maintenance

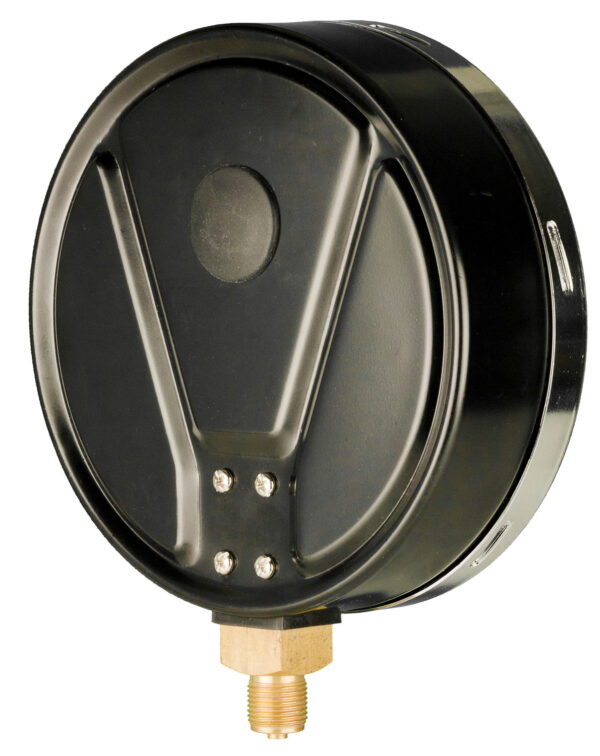

- 30mm rear safety blow-out disc enhances user safety under overpressure conditions
| Weight | 0.92 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi |
| Thread | 3/8" BSP (parallel) 1/2" BSP (parallel) 1/2" BSPT (tapered) 1/2" NPT (tapered) |
| Connection | |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
