40mm – All Stainless Steel Pressure Gauge – Dry Fillable, Back Connection – Accuracy ±2.5%
Price range: £39.95 through £48.95
Compact 40mm all stainless steel pressure gauge with back connection, dry-fillable design, and ±2.5% accuracy, suitable for demanding industrial applications.

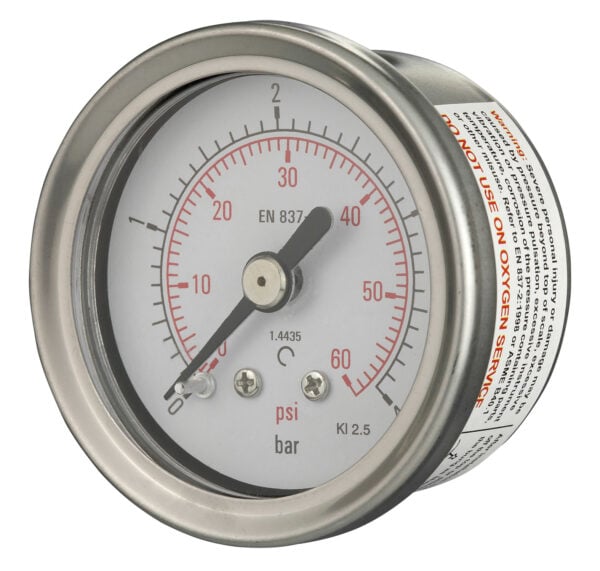

All Stainless Steel 40mm Pressure Gauge with Back Connection
This 40mm diameter pressure gauge is designed for reliable measurement in demanding industrial environments. Its all stainless steel construction and dry-fillable design ensure durability and corrosion resistance, making it ideal for use with various fluids and gases.
Key Features
- Compact 40mm diameter suitable for panel mounting (44mm cut-out recommended)
- Robust stainless steel case and crimped bezel for enhanced corrosion resistance
- AISI 316L stainless steel wetted parts provide excellent chemical and temperature resistance
- Dry-fillable design with polycarbonate window for clear visibility and durability

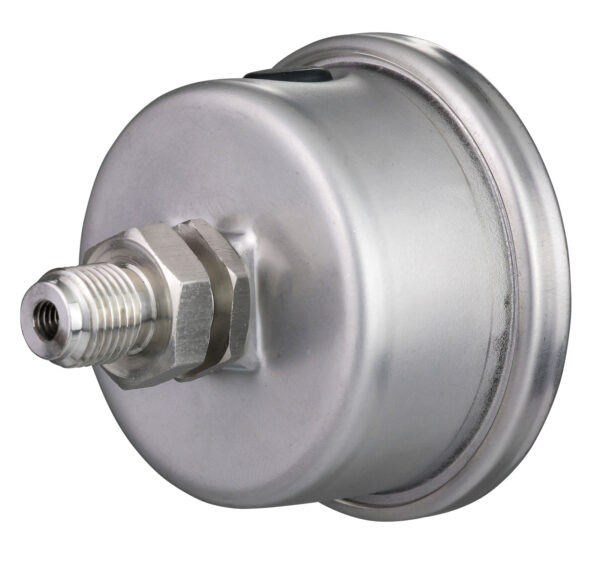

- Back connection for easy installation in tight spaces
- Accuracy of ±2.5% full scale ensures reliable pressure readings up to 400 bar (6000 psi)
| Weight | 0.08 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg -1/0 bar vacuum to 0/+2 bar pressure 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar and 0/240 psi 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi 0/100 bar and 0/1500 psi 0/160 bar and 0/2500 psi 0/200 bar and 0/3000 psi 0/280 bar and 0/4000 psi 0/400 bar and 0/6000 psi |
| Thread | 1/8" BSP No-Spigot (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
