63mm – General Purpose Pressure Gauge – Dry, Back Connection – Accuracy ±1.6%
Price range: £6.95 through £10.95
63mm dry pressure gauge with back connection, black enameled steel case, brass wetted parts and ±1.6% accuracy, ideal for pneumatic and general fluid pressure measurement.
General Purpose 63mm Dry Pressure Gauge with Back Connection
This 63mm pressure gauge is designed for reliable measurement of pneumatic and general fluid pressures where dry gauges are suitable. Its robust black enameled steel case and brass wetted parts make it ideal for use in environments where corrosion resistance and durability are required, while maintaining an accuracy of ±1.6% full scale.
Key Features

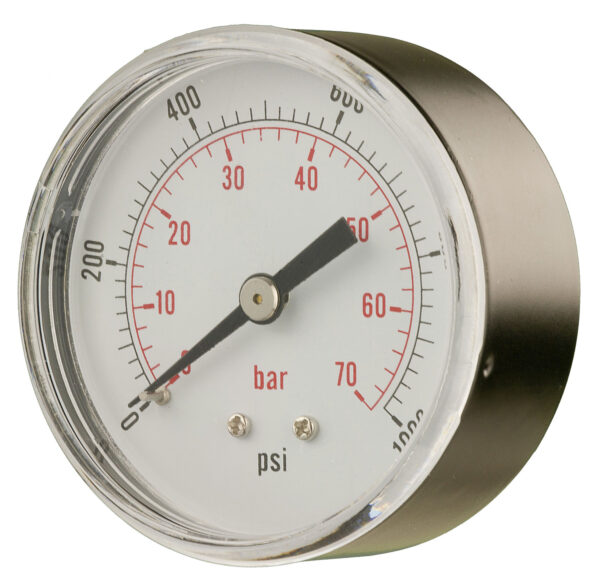

- 63mm diameter dial for clear and precise readings

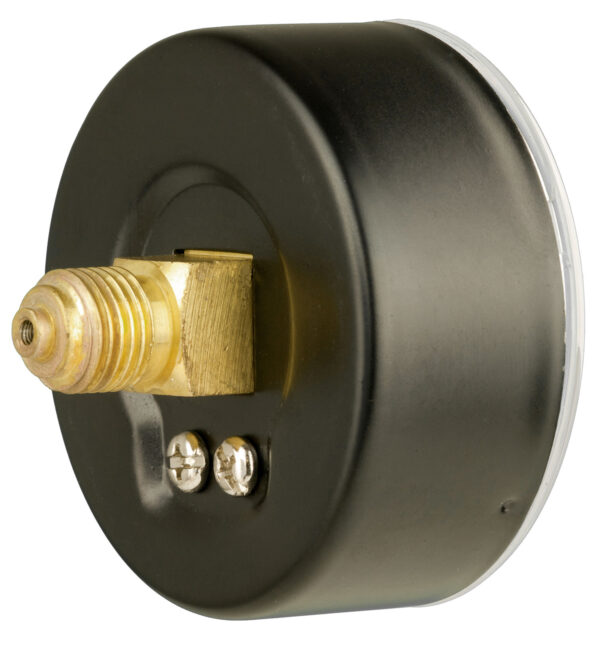

- Back connection with 1/4″ BSP parallel male thread for straightforward installation
- Black enameled steel case providing durability and corrosion resistance
- Brass wetted parts suitable for non-corrosive fluids and gases (excluding oxygen and acetylene)
- Dry gauge construction ideal for pneumatic and air applications
- Accuracy of ±1.6% full scale ensures dependable measurement
| Weight | 0.13 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar 0/600 psi and 0/41 bar 0/1000 psi and 0/70 bar |
| Thread | |
| Connection | |
| Diameter | |
| Case Material | |
| Accuracy |
