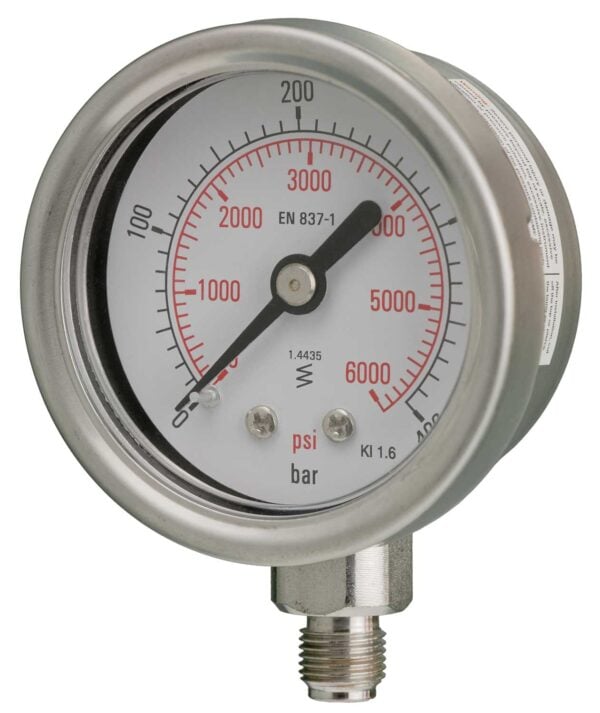

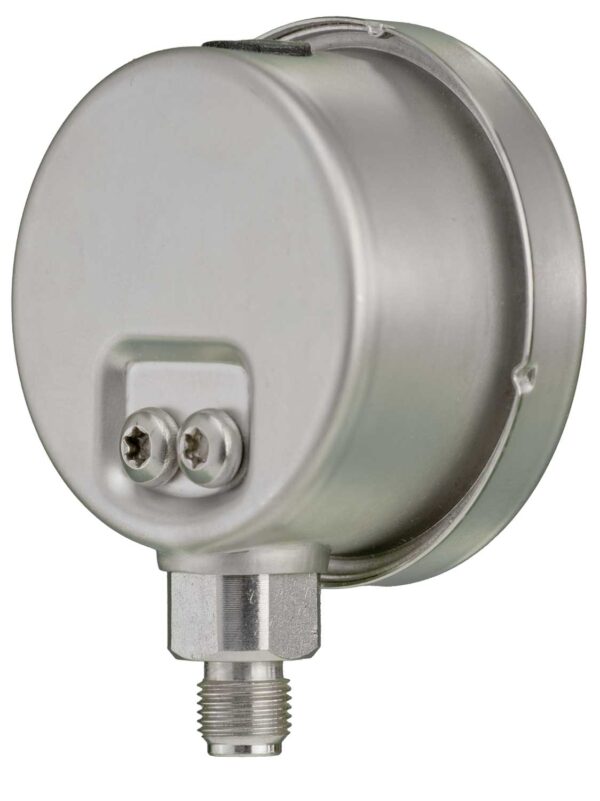

50mm – All Stainless Steel Pressure Gauge – Dry Fillable, Bottom Connection – Accuracy ±1.6%
Price range: £39.95 through £48.95
50mm all stainless steel pressure gauge with bottom connection, ±1.6% accuracy, and durable 316L wetted parts, suitable for demanding industrial process applications.
This 50mm diameter all stainless steel pressure gauge is designed for reliable measurement of fluid liquids and gases in demanding industrial environments. Its robust stainless steel construction and dry fillable design ensure durability and corrosion resistance, making it ideal for process applications where accuracy and longevity are essential.
Key Features
- Compact 50mm diameter size for installations with limited space
- All stainless steel case and removable bezel for enhanced corrosion resistance
- Wetted parts manufactured from AISI 316L stainless steel for chemical and temperature resilience
- Polycarbonate crystal-clear window providing excellent visibility and impact resistance
- Bottom connection for straightforward panel or pipe mounting
- Accuracy of ±1.6% full scale deflection for dependable readings up to 400 bar (6000 psi)
| Weight | 0.09 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg -1/0 bar vacuum to 0/+2 bar pressure 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar and 0/240 psi 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi 0/100 bar and 0/1500 psi 0/160 bar and 0/2500 psi 0/200 bar and 0/3000 psi 0/280 bar and 0/4000 psi 0/400 bar and 0/6000 psi |
| Thread | 1/8" BSP No-Spigot (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
