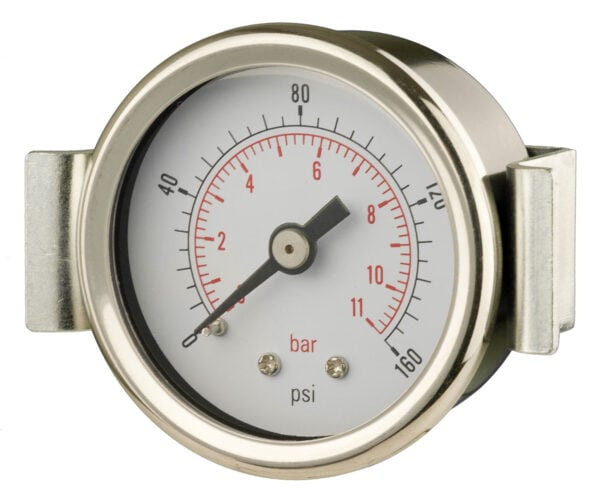

50mm – Panel Mounted Pressure Gauge – Dry – Accuracy ±2.5%
£9.95
50mm dry panel mounted pressure gauge with brass wetted parts, black enameled steel case, and ±2.5% accuracy, ideal for pneumatic and air pressure applications.
The 50mm Panel Mounted Pressure Gauge is a reliable, general-purpose dry gauge designed for measuring pneumatic and air pressure in panel-mounted applications. Its robust black enameled steel case and brass wetted parts ensure durability and compatibility with a range of non-corrosive fluids and gases.
Key Features
- Compact 50mm diameter ideal for panel mounting with a recommended 53mm cut-out
- Durable black enameled steel case with chrome crimped bezel and clear acrylic window
- Brass and bronze wetted parts suitable for pneumatic applications and non-corrosive fluids
- Accuracy of ±2.5% full scale for dependable pressure readings

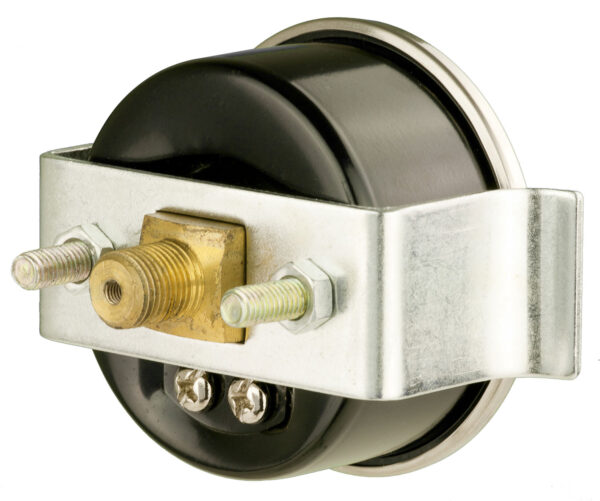

- Supplied complete with a U style bracket for secure panel installation
| Weight | 0.15 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar |
| Thread | |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
