80mm – Combined Pressure & Temperature Gauge – Dry, Back Connection – Accuracy ±2.5%
£29.95
80mm combined pressure and temperature gauge with dry back connection, black enameled steel case, stainless steel bezel, and ±2.5% accuracy. Supplied with a 1/2″ BSP brass non-return check valve.

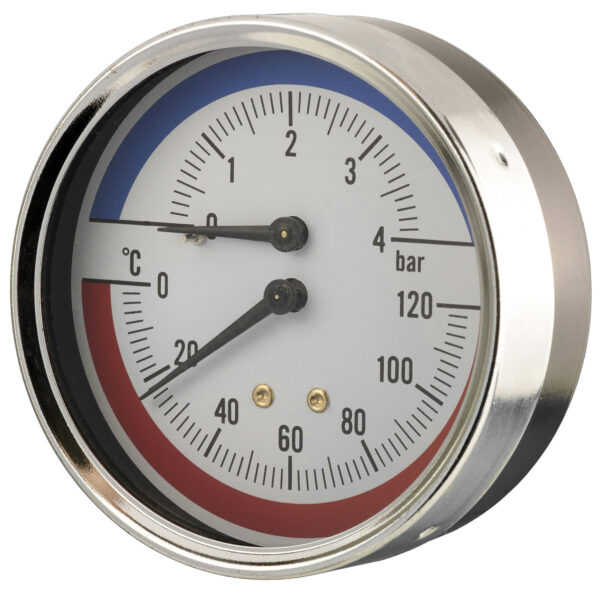

Combined Pressure & Temperature Gauge – 80mm, Dry Back Connection
This 80mm combined pressure and temperature gauge provides reliable dual measurement in a compact design, ideal for heating, ventilation, and mechanical services where space is limited. Its robust construction and clear display make it suitable for demanding industrial environments.
Key Features
- 80mm diameter black enameled steel case with 304 stainless steel bezel for durability

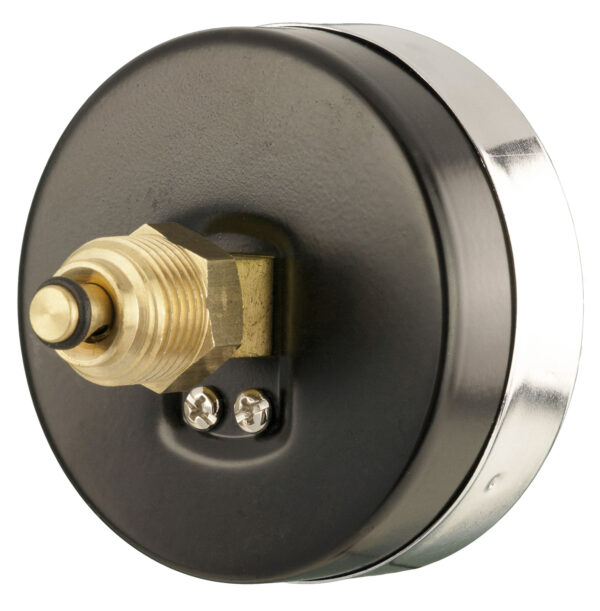

- Dry gauge design with back connection for easy installation in confined spaces
- Combined pressure and temperature readings on a single dial for efficient monitoring
- Polycarbonate window offering clear visibility and impact resistance
- Supplied with a 1/2″ BSP brass non-return check valve for added system protection
- Pressure accuracy of ±2.5% full scale deflection ensures reliable measurements
| Weight | 0.26 kg |
|---|---|
| Range | 0/4 bar and 0/120°C 0/6 bar and 0/120°C 0/10 bar and 0/120°C |
| Connection | |
| Diameter | |
| Case Material | |
| Accuracy |
