Stainless Steel Test Points
Price range: £24.95 through £48.95

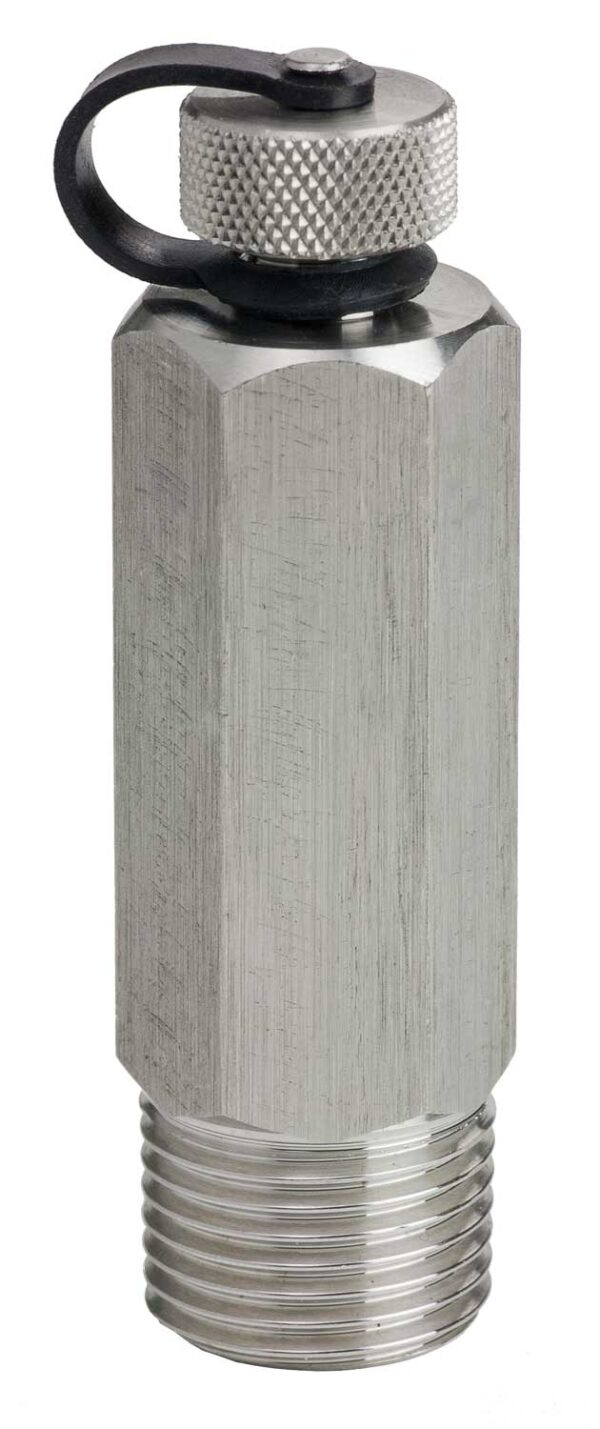

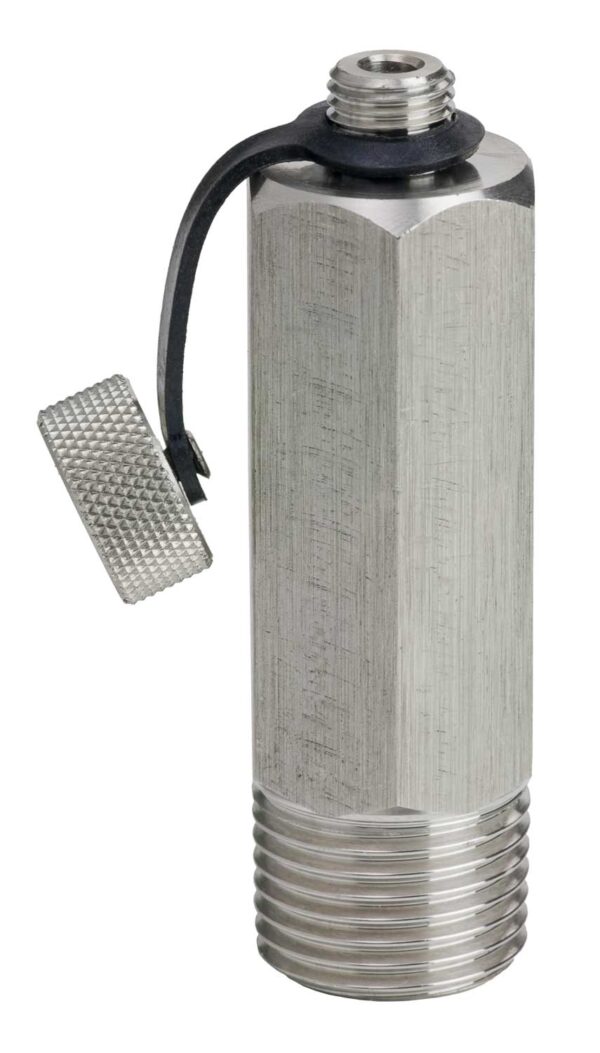

316L stainless steel test points with neoprene seals, suitable for low temperature hot and chilled water systems, available in 1/4″ and 1/2″ BSPT sizes with pressure rating up to 35 bar.
Stainless Steel Test Points
Stainless Steel Test Points provide a reliable and durable solution for pressure measurement access in low temperature hot water and chilled water systems. Designed for easy installation and maintenance, they ensure safe and accurate gauge connection while withstanding typical HVAC operating conditions.
Key Features
- Constructed from corrosion-resistant 316L stainless steel for long service life
- Cap seal made from neoprene rubber ensures a secure, leak-tight closure
- Retaining strap and core manufactured from ethylene propylene rubber for flexibility and durability
- Suitable for maximum pressure up to 35 bar (500 psi)
- Temperature range from -8°C (18°F) to +135°C (275°F), ideal for chilled and low temperature hot water
- Available in standard 1/4″ and 1/2″ BSPT connections with compact lengths, plus extended versions for insulated pipework
| Weight | 0.11 kg |
|---|---|
| Thread | |
| Length | |
| Wetted Material |
