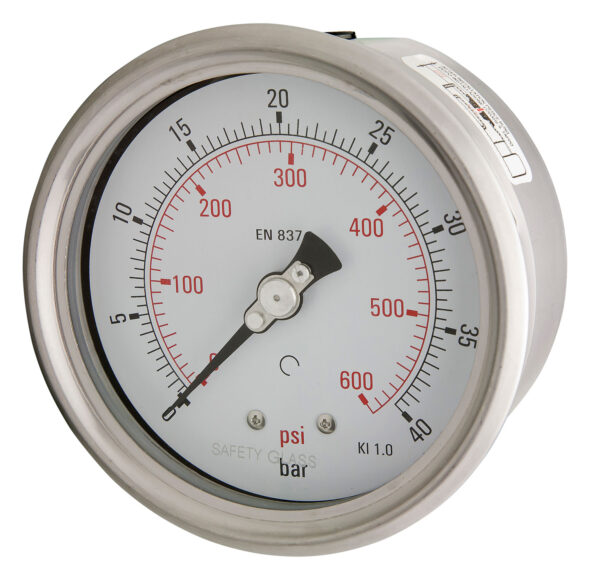

100mm – Glycerine Filled Pressure Gauge – Lower Back Connection – Accuracy ±1%
Price range: £62.95 through £94.90
100mm glycerine filled pressure gauge with Lower back connection, stainless steel case, brass wetted parts and ±1% accuracy for stable readings in vibrating environments.
100mm Heavy-Duty Glycerine Hydraulic Gauge | Lower Back Connection
Designed to withstand severe operating conditions, this 100mm heavy-duty DIN-type hydraulic pressure gauge is the ideal choice for high-vibration and high-pulsation environments. The liquid glycerine filling dampens internal movement, drastically reducing pointer flutter, protecting the components from premature wear, and ensuring a steady, reliable reading.
Advanced Safety & Construction
Safety and durability are at the core of this gauge’s design:

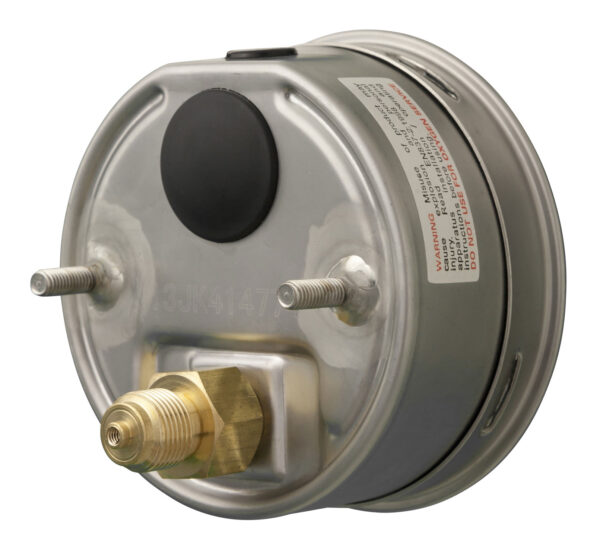

- Rugged Housing: Premium stainless steel case equipped with a 30mm rear safety blow-out disc to protect operators in the event of over-pressurisation.
- Heavy-Duty Window: Fitted with tough safety glass as standard, providing crystal-clear readability and superior scratch resistance.
- Premium Internals: Robust brass and bronze wetted parts ensure reliable long-term performance in fluid systems.
Precision & Serviceability
Unlike standard sealed units, this gauge is built to be fully serviceable:
- High Accuracy: Delivers ±1.0% full-scale accuracy, suitable for critical system monitoring.
- Micro-Adjustable Pointer: Allows for precise on-site calibration tweaks and adjustments.
- Removable Bezel: Features a spin-off/removable stainless steel bezel, allowing the instrument to be easily repaired, recalibrated, or topped up with fluid in the future rather than replaced.
- Full Traceability: Every individual gauge is stamped with its own unique serial number for complete quality control and asset tracking.
Typical Applications
Perfect for industrial hydraulics, power packs, pumps, compressors, and any heavy manufacturing application where pressure spikes, mechanical shock, and high vibration are present.
