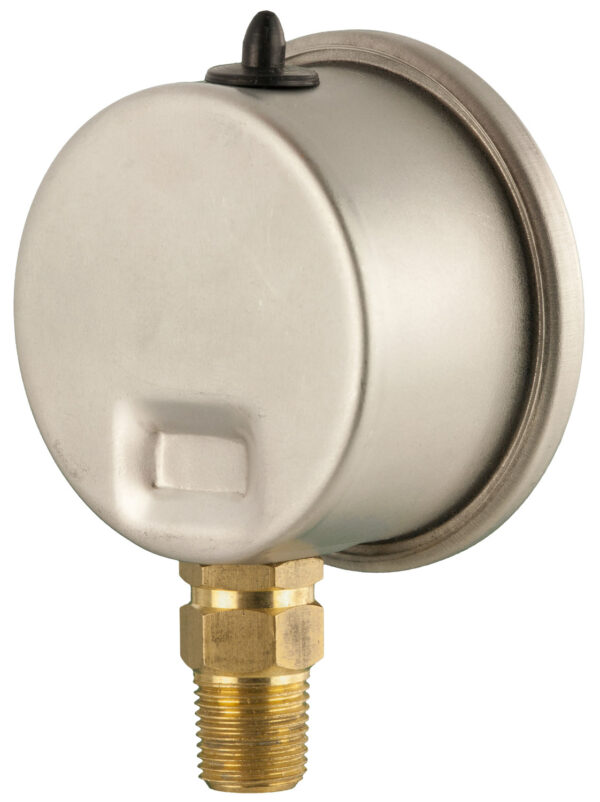

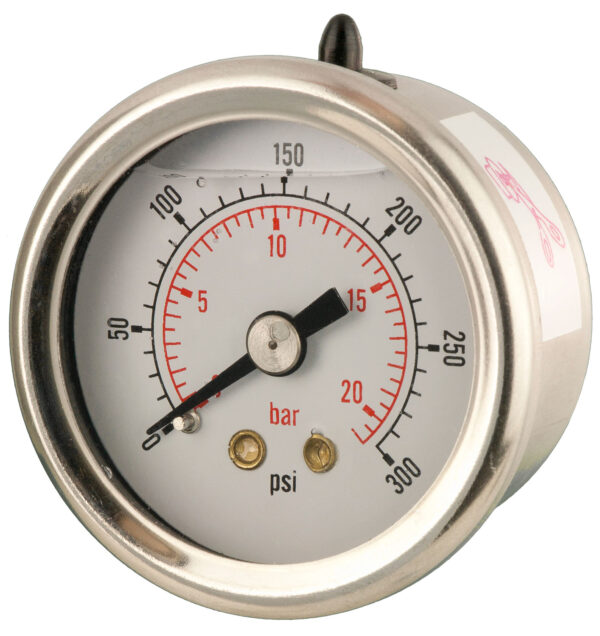

40mm – Glycerine Filled Pressure Gauge – Back Connection – Accuracy ±2.5%
Price range: £37.95 through £48.45
Compact 40mm dry fillable industrial pressure gauge with back connection, brass wetted parts and ±2.5% accuracy, housed in a durable stainless steel case.
The 40mm Industrial Pressure Gauge is a robust, dry fillable instrument designed for reliable pressure measurement in a variety of industrial applications. Its stainless steel case and back connection make it suitable for environments requiring durable and accurate monitoring of non-corrosive fluids and non-oxidising gases.
Key Features
- 40mm diameter stainless steel case with crimped bezel and clear polycarbonate window
- Back connection for easy installation in compact spaces
- Brass wetted parts compatible with non-corrosive liquids and gases
- Accuracy of ±2.5% full scale deflection for dependable readings
- Dry fillable design suitable for fluids not exceeding 60°C and non-viscous applications
- Recommended 43mm panel cut-out for panel mounting
| Weight | 0.07 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar -30/0 in Hg vacuum to 0/+30 psi pressure 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar 0/600 psi and 0/41 bar 0/1000 psi and 0/70 bar 0/1500 psi and 0/103 bar 0/2000 psi and 0/138 bar 0/2500 psi and 0/172 bar 0/3000 psi and 0/207 bar 0/4000 psi and 0/275 bar |
| Thread | 1/8" BSP (parallel) 1/8" BSPT (tapered) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
