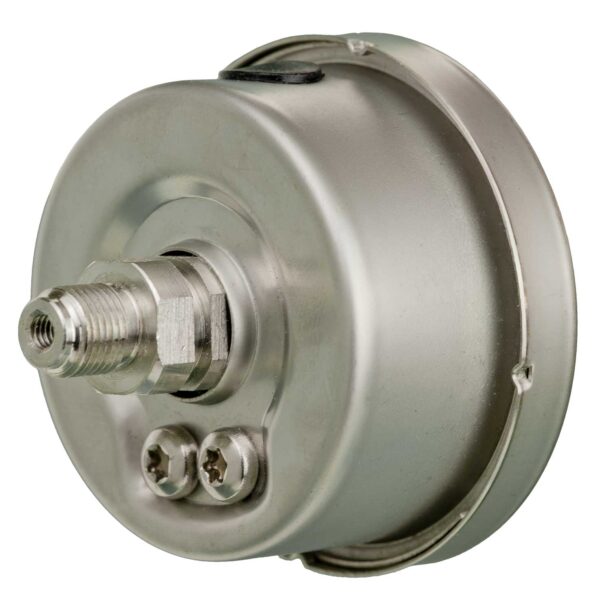

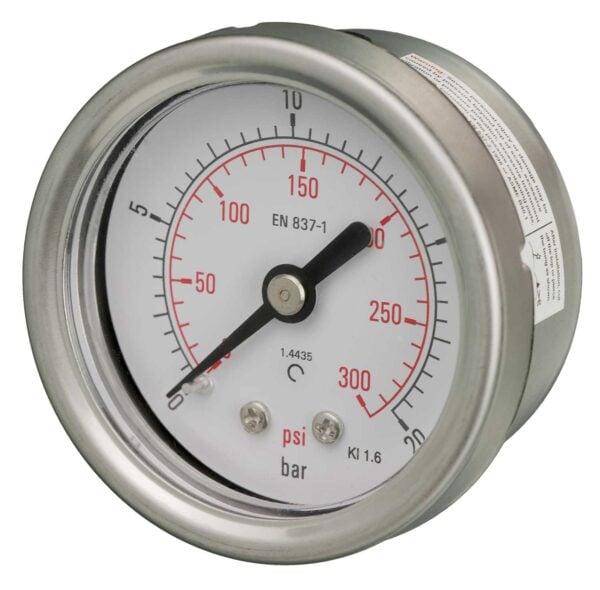

50mm – All Stainless Steel Pressure Gauge – Dry Fillable, Back Connection – Accuracy ±1.6%
Price range: £44.95 through £53.95
50mm all stainless steel pressure gauge with back connection, 316L wetted parts and ±1.6% accuracy, ideal for corrosion-resistant industrial pressure measurement.
This 50mm all stainless steel pressure gauge is designed for reliable measurement of fluid liquids and gases in demanding industrial environments. Its robust construction and high accuracy make it ideal for applications requiring corrosion resistance and precise pressure monitoring.
Key Features
- Compact 50mm diameter size with back connection for easy installation
- Durable stainless steel case and removable bezel for enhanced corrosion resistance
- Wetted parts manufactured from AISI 316L stainless steel for chemical and temperature resilience
- Clear polycarbonate window providing excellent visibility and impact resistance
- Accuracy of ±1.6% full scale for dependable pressure readings
- Maximum pressure rating up to 400 bar (6000 psi) suitable for a wide range of industrial processes
| Weight | 0.08 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg -1/0 bar vacuum to 0/+2 bar pressure 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar and 0/240 psi 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi 0/100 bar and 0/1500 psi 0/160 bar and 0/2500 psi 0/200 bar and 0/3000 psi 0/280 bar and 0/4000 psi 0/400 bar and 0/6000 psi |
| Thread | 1/8" BSP No-Spigot (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
