50mm – Glycerine Filled Pressure Gauge – Bottom Connection – Accuracy ±2.5%
Price range: £23.95 through £31.95
Compact 50mm glycerine filled pressure gauge with bottom connection, stainless steel case, brass wetted parts and ±2.5% accuracy for stable readings in vibrating environments.

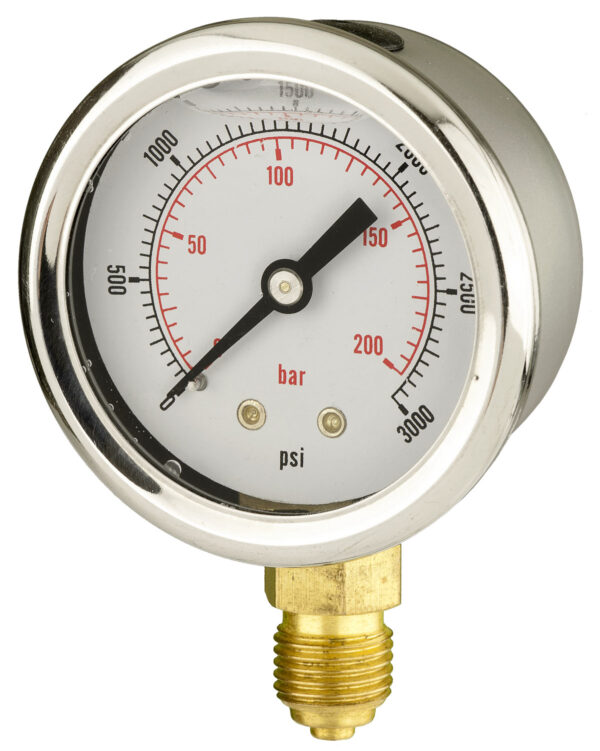

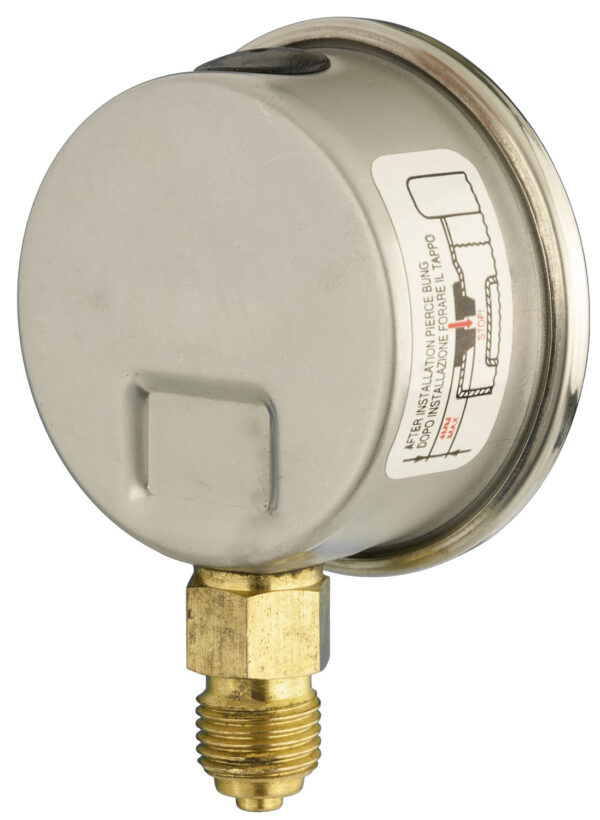

50mm Glycerine Filled Pressure Gauge with Bottom Connection
This compact 50mm pressure gauge is designed for reliable pressure measurement in fluid and gas systems where vibration or pressure surges occur. Its glycerine filling dampens pointer movement, providing stable readings in demanding industrial environments.
Key Features
- 50mm diameter stainless steel case with robust crimped bezel and clear polycarbonate window
- Bottom connection for easy installation in tight spaces
- Brass wetted parts compatible with non-corrosive liquids and gases up to 25 bar
- Glycerine filled to reduce pointer oscillation caused by vibration or pressure surges
- Accuracy of ±2.5% full scale range for dependable measurements
- Suitable for a variety of industrial applications excluding highly viscous, high temperature or corrosive fluids
| Weight | 0.14 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar -30/0 in Hg vacuum to 0/+30 psi pressure 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar 0/600 psi and 0/41 bar 0/1000 psi and 0/70 bar 0/1500 psi and 0/103 bar 0/2000 psi and 0/138 bar 0/2500 psi and 0/172 bar 0/3000 psi and 0/207 bar 0/4000 psi and 0/275 bar 0/5000 psi and 0/345 bar 0/6000 psi and 0/414 bar |
| Thread | 1/8" BSP (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
