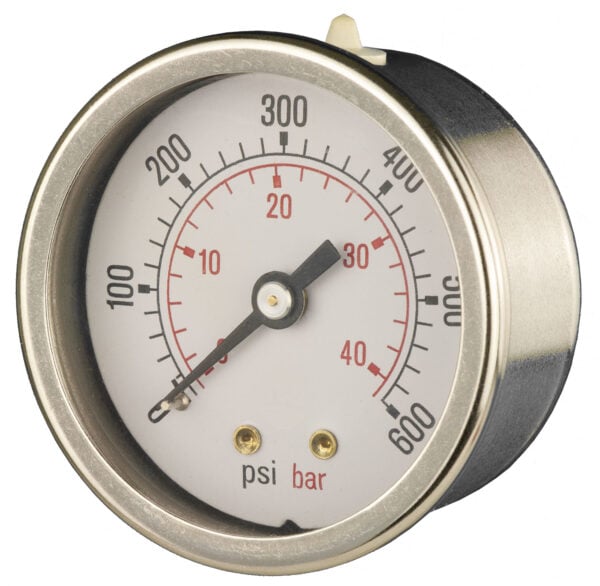

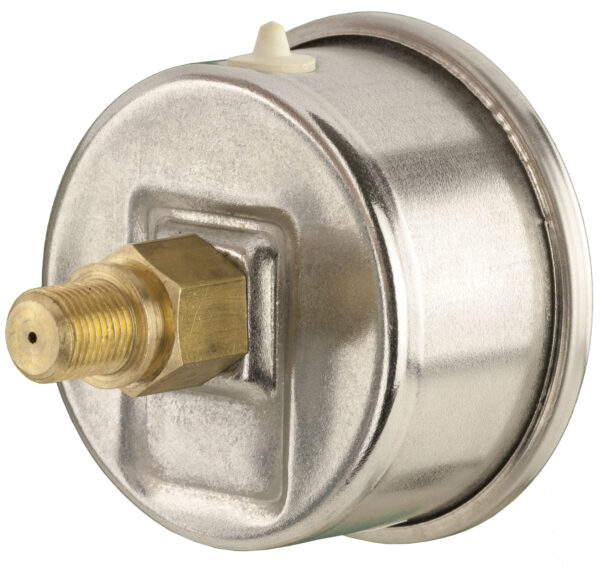

50mm – Panel Mounting Pressure Gauge – Dry – Accuracy ±2.5%
Price range: £12.95 through £17.90
50mm dry panel mounting pressure gauge with brass wetted parts, stainless steel case, and ±2.5% accuracy, ideal for pneumatic and air pressure applications.
The 50mm Panel Mounting Pressure Gauge is a reliable, general-purpose dry gauge designed for measuring pneumatic and air pressure in panel-mounted applications. Its robust stainless steel case and brass wetted parts ensure durability and compatibility with a range of non-corrosive fluids and gases.
Key Features
- Compact 50mm diameter ideal for panel mounting with a recommended 52mm cut-out
- Durable stainless steel case and clear acrylic window
- Brass and bronze wetted parts suitable for pneumatic applications and non-corrosive fluids
- Accuracy of ±2.5% full scale for dependable pressure readings
- Supplied complete with a U style bracket for secure panel installation
| Weight | 0.12 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar |
| Thread | 1/8" BSP (parallel) 1/8" BSPT (tapered) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | Direct Mounting Panel Mounting with Front 3 Hole Flange Panel Mounting with Rear Bracket |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
