63mm – Panel Mounted Pressure Gauge – Dry – Accuracy ±1.6%
£10.95
63mm dry panel mounted pressure gauge with brass wetted parts, black enameled steel case, and ±1.6% accuracy, ideal for pneumatic and general industrial use.
63mm Panel Mounted Dry Pressure Gauge
This 63mm dry pressure gauge is designed for reliable panel mounting in pneumatic and general industrial applications. Its robust black enameled steel case and brass wetted parts ensure durability and compatibility with a wide range of non-corrosive fluids and gases up to 25 bar.
Key Features
- 63mm diameter panel mounting gauge with a recommended panel cut-out size of 63mm
- Black enameled steel case with chrome crimped bezel and clear acrylic window for easy reading
- Brass/bronze wetted parts suitable for non-corrosive fluids and gases (excluding oxygen and acetylene)
- Accuracy of ±1.6% full scale for precise pressure measurement

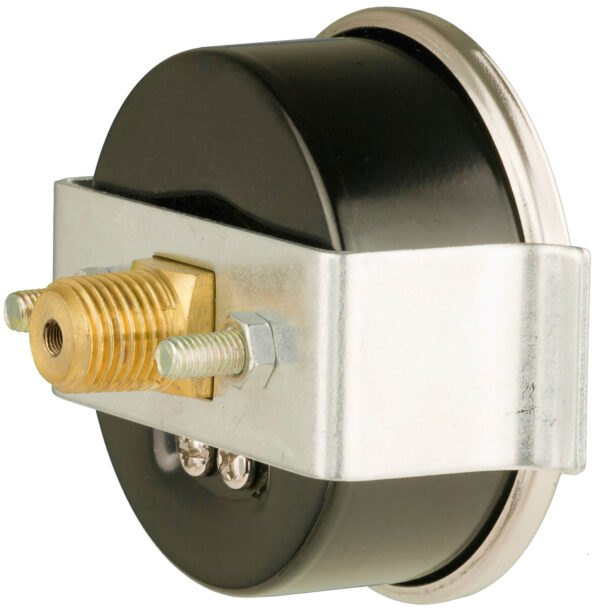

- Supplied complete with a U style rear panel mounting bracket for secure installation
- Suitable for pneumatic systems, air compressors, HVAC, and water industry applications
| Weight | 0.2 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar 0/600 psi and 0/41 bar 0/1000 psi and 0/70 bar |
| Thread | |
| Diameter | |
| Case Material | |
| Accuracy | |
| Wetted Material |
