40mm – All Stainless Steel Pressure Gauge – Dry Fillable, Bottom Connection – Accuracy ±2.5%
Price range: £34.95 through £43.95
40mm all stainless steel dry fillable pressure gauge with bottom connection, 316L wetted parts and ±2.5% accuracy, suitable for demanding industrial process applications.

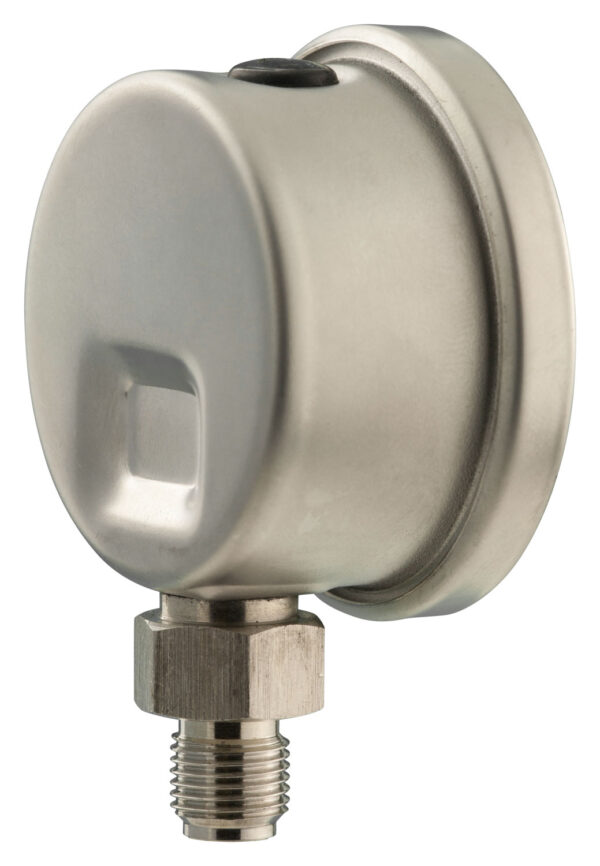

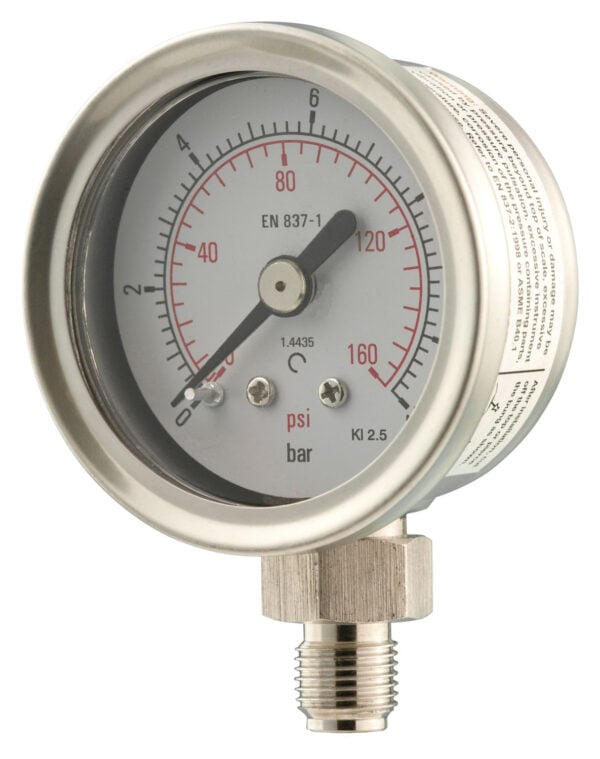

All Stainless Steel 40mm Pressure Gauge with Bottom Connection
This compact 40mm diameter pressure gauge is designed for reliable measurement in demanding industrial environments. Its robust all stainless steel construction and dry fillable design ensure durability and corrosion resistance, making it ideal for process applications where precision and longevity are essential.
Key Features
- Compact 40mm nominal diameter for installations with limited space
- All stainless steel case and crimped bezel (304 SS) for enhanced corrosion resistance
- Wetted parts made from AISI 316L stainless steel for superior chemical compatibility
- Bottom connection for straightforward panel or pipe mounting
- Polycarbonate window providing clear visibility and impact resistance
- Accuracy of ±2.5% full scale for dependable readings up to 400 bar (6000 psi)
| Weight | 0.06 kg |
|---|---|
| Range | -1/0 bar and -30/0 in Hg -1/0 bar vacuum to 0/+2 bar pressure 0/1 bar and 0/15 psi 0/2 bar and 0/30 psi 0/4 bar and 0/60 psi 0/7 bar and 0/100 psi 0/11 bar and 0/160 psi 0/14 bar and 0/200 psi 0/16 bar and 0/240 psi 0/20 bar and 0/300 psi 0/28 bar and 0/400 psi 0/40 bar and 0/600 psi 0/70 bar and 0/1000 psi 0/100 bar and 0/1500 psi 0/160 bar and 0/2500 psi 0/200 bar and 0/3000 psi 0/280 bar and 0/4000 psi 0/400 bar and 0/6000 psi |
| Thread | 1/8" BSP No-Spigot (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
