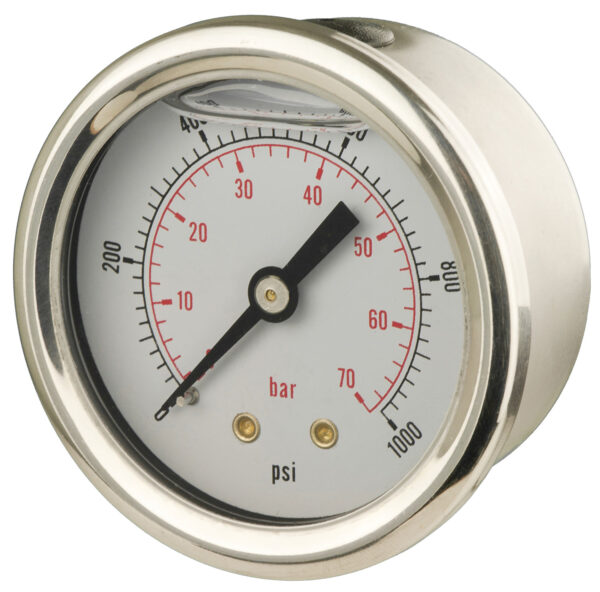

50mm – Glycerine Filled Pressure Gauge – Back Connection – Accuracy ±2.5%
Price range: £26.95 through £34.95
Compact 50mm glycerine filled pressure gauge with back connection, stainless steel case, brass wetted parts and ±2.5% accuracy for stable readings in vibrating environments.
The 50mm glycerine filled pressure gauge with back connection is designed for reliable pressure measurement in systems subject to vibration or pressure surges. Its compact size and robust stainless steel case make it ideal for industrial applications where space is limited but accurate readings are essential.
Key Features
- Compact 50mm diameter stainless steel case with crimped bezel and clear polycarbonate window
- Glycerine filled to dampen pointer movement, improving readability under vibration or pulsating conditions

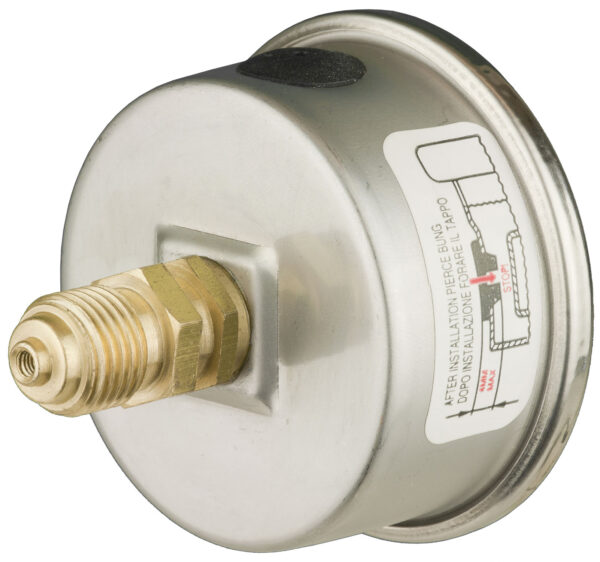

- Back connection for easy installation in confined spaces
- Brass wetted parts suitable for a wide range of fluids and gases (excluding highly corrosive or oxidising gases)
- Accuracy of ±2.5% full scale for dependable measurement
- Recommended 52mm panel cut-out for panel mounting applications
| Weight | 0.15 kg |
|---|---|
| Range | -30/0 in Hg and -1/0 bar -30/0 in Hg vacuum to 0/+30 psi pressure 0/15 psi and 0/1 bar 0/30 psi and 0/2 bar 0/60 psi and 0/4 bar 0/100 psi and 0/7 bar 0/160 psi and 0/11 bar 0/200 psi and 0/14 bar 0/300 psi and 0/21 bar 0/400 psi and 0/28 bar 0/600 psi and 0/41 bar 0/1000 psi and 0/70 bar 0/1500 psi and 0/103 bar 0/2000 psi and 0/138 bar 0/2500 psi and 0/172 bar 0/3000 psi and 0/207 bar 0/4000 psi and 0/275 bar 0/5000 psi and 0/345 bar 0/6000 psi and 0/414 bar |
| Thread | 1/8" BSP (parallel) 1/4" BSP (parallel) 1/4" NPT (tapered) 1/4" BSPT (tapered) |
| Mounting | |
| Connection | |
| Diameter | |
| Case Material | |
| Glycerin Filled | |
| Accuracy | |
| Wetted Material |
