Need a specific configuration? If you can’t find the exact specifications or components you require, please get in touch with our team - we are here to help.

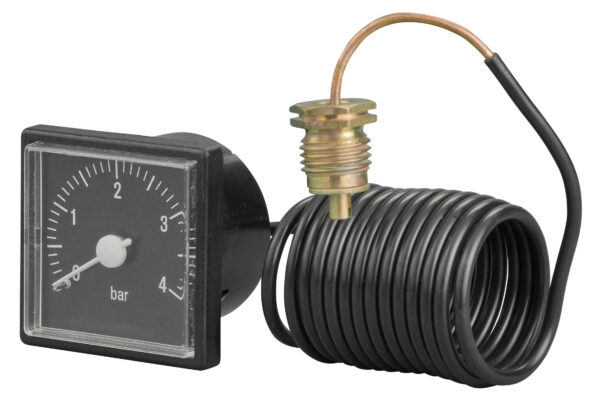

37mm – Square Plastic Case Capillary Pressure Indicator – Clip-In Panel Mounting
£19.95
37mm Square Capillary Pressure Indicator (Panel Mount)
A compact, dashboard-style pressure indicator featuring a sleek black ABS/Nylon square case and an integrated clip-in panel mounting design. Equipped with a flexible 1500mm black PVC-sheathed capillary tube, a shatter-resistant acrylic window, and a high-contrast black and white dial, it delivers ±3% full-scale accuracy. Designed for easy installation, it fits a standard 37.5mm panel cut-out and is available with M14x1 or 1/4″ BSP thread fittings.
37mm Square Plastic Case Capillary Pressure Indicator
Engineered for automotive, agricultural, industrial dashboards, and compact control panels, this 37mm square pressure indicator provides reliable remote readings where space is at a premium. By utilising a flexible capillary line rather than a direct rear connection, this instrument allows the display dial to be safely mounted far from the fluid source or high-temperature engine bay.
Quick Clip-In Panel Installation
Designed with the installer in mind, this indicator eliminates the need for loose mounting brackets, nuts, or studs:
- Integral Mounting Clips: The heavy-duty black ABS/Nylon housing features moulded snap-in clips. This allows the unit to simply push into a panel from the front and click securely into place.
- Panel Preparation: A standard panel cut-out diameter of 37.5mm is recommended for a flush, vibration-resistant fit.
Durable Construction & High Visibility
Built to handle the knocks and vibrations of industrial environments:
- Shatter-Resistant Window: Fitted with a robust acrylic plastic lens to prevent cracking or splintering in harsh workspaces.
- High-Contrast Dial: Features a premium stoved enamel finish on an aluminium base. The stark white graphics over a deep black background ensure crisp readability even in low-light conditions.
- Reliable Performance: Delivers a consistent accuracy of±3% of the full scale range.
Capillary & Connection Specifications
- Remote Capillary Line: Supplied with a 1500mm long pressure tube capillary, fully protected by a durable, chemical-resistant black PVC sheath.
- Process Connections: Available to order with either an M14x1 metric or a standard 1/4″ BSP thread fitting.
| Weight | 0.06 kg |
|---|---|
| Range | |
| Thread | 1/2" BSPT (tapered) for 1/4" BSP Capillary Pressur 1/2" BSPT (tapered) for M14 x 1 Capillary Pressure M14x1 1/4" BSP (parallel) |
| Diameter | |
| Case Material |
